The cooling system in injection molding machines is typically referred to as the "cold mold." This system can effectively slow down the rise of the mold temperature, thereby protecting the mold, reducing deformation and internal defects in the injection molded product. In addition, it can effectively control the mold temperature, shorten the injection molding cycle time, and improve production efficiency.
Item NO.:

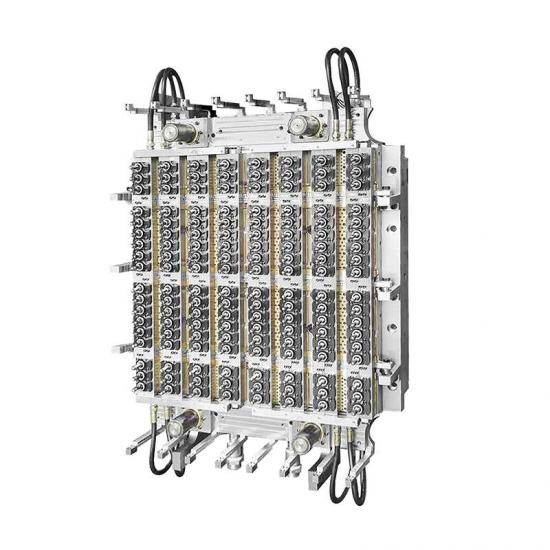

CH230-144PET Preform Cold Runner Mould
Feature
specification
| Cavities | Cavity Distribution | Pitch / mm | NeckFinish (max.) |
H x W x D(max.) | Weight/ kg | |
| 12 | UPET130 | 2x6 | 75x172 | 48 | 800 x 490 x 600 | 2000 |
| 24 | 4x6 | 60x120 | 30 | 750 x 490 x 600 | 1700 | |
| 24 | 4x6 | 60x152 | 38 | 610 x 730 x 600 | 1800 | |
| 32 | 4x8 | 60x120 | 30 | 850 x 490 x 600 | 1800 | |
| 24 | UPET230 (UPET300) |
4x6 | 75x172 | 48 | 850 x 700 x 680 | 2500 |
| 32 | 4x8 | 60x152 | 38 | 860 x 610 x 680 | 2300 | |
| 48 | 4x12 | 50x140 | 30 | 980 x 600 x 680 | 2600 | |
| 32 | UPET300 (UPET400) |
4x8 | 75x172 | 48 | 1000 x 700 x 800 | 3300 |
| 48 | 4x12 | 60x152 | 38 | 1080 x 610 x 800 | 2800 | |
| 72 | 6x12 | 60x140 | 38 | 1120 x 840 x 800 | 4200 | |
| 72 | 6x12 | 50x140 | 30 | 1120 x 900 x 800 | 4200 | |
| 48 | UPET400 | 4x12 | 75x175 | 48 | 1300 x 700 x 820 | 3800 |
| 72 | 6x12 | 65x160 | 43 | 1250 x 1000 x 820 | 5000 | |
| 96 | 6x16 | 50x140 | 30 | 1300 x 850 x 820 | 5500 | |
| 48 | UPET400H | 4x12 | 75x175 | 48 | 1300 x 700 x 820 | 3800 |
| 72 | 6x12 | 65x160 | 43 | 1250 x 1000 x 820 | 5000 | |
| 96 | 8x12 | 60x140 | 38 | 1250 x 1110 x 820 | 5500 | |
| 96 | 6x16 | 50x140 | 30 | 1230 x 960 x 820 | 5200 | |
| 96 | 6x16 | 50x155 | 30 | 1230 x 1110 x 820 | 5500 | |
| 72 | UPET500 | 6x12 | 75x175 | 48 | 1420 x 1100 x 820 | 6000 |
| 96 | 6x16 | 65x160 | 43 | 1420 x 1100 x 820 | 6000 | |
| 128 | 8x16 | 60x140 | 38 | 1420 x 1250 x 820 | 6000 | |
| 144 | 8x18 | 50x140 | 30 | 1420 x 1250 x 820 | 6000 |
