Hot runner molds are a type of injection mold that uses heatingelements to transfer heat to the central location of the mold,offering advantages such as saving raw materials, increasing production efficiency, and reducing costs. In actual production, it can achieve more precise and efficient injection molding.
Item NO.:

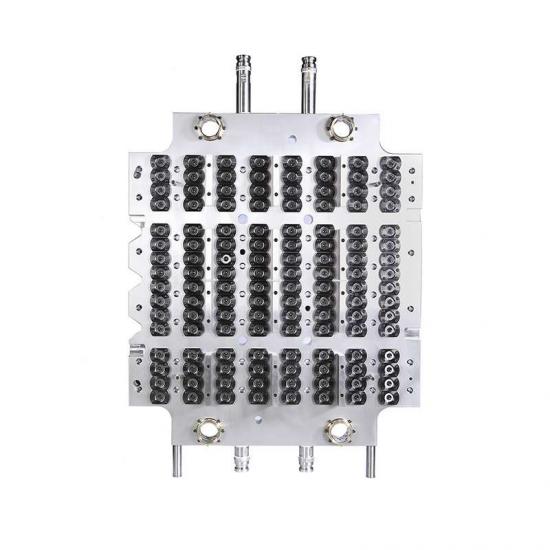

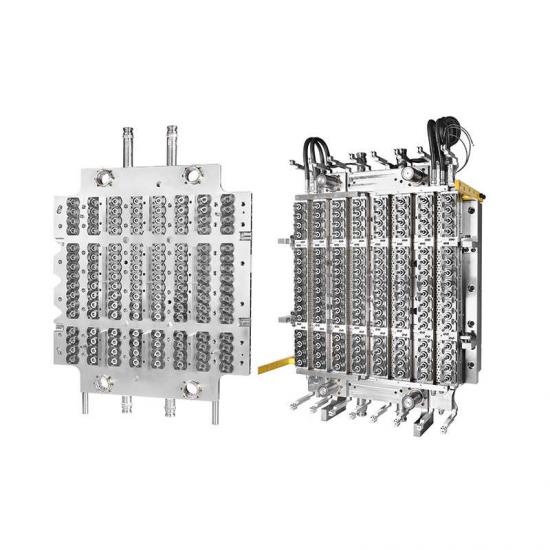

HR230-144144 cavity Hot Runner Pet Preform Mould
Feature
specification
| Cavities | Cavity Distribution | Pitch / mm | NeckFinish (max.) |
H x W x D(max.) | Weight/ kg | |
| 12 | UPET130 | 2x6 | 75x172 | 48 | 800 x 490 x 600 | 2000 |
| 24 | 4x6 | 60x120 | 30 | 750 x 490 x 600 | 1700 | |
| 24 | 4x6 | 60x152 | 38 | 610 x 730 x 600 | 1800 | |
| 32 | 4x8 | 60x120 | 30 | 850 x 490 x 600 | 1800 | |
| 24 | UPET230 (UPET300) |
4x6 | 75x172 | 48 | 850 x 700 x 680 | 2500 |
| 32 | 4x8 | 60x152 | 38 | 860 x 610 x 680 | 2300 | |
| 48 | 4x12 | 50x140 | 30 | 980 x 600 x 680 | 2600 | |
| 32 | UPET300 (UPET400) |
4x8 | 75x172 | 48 | 1000 x 700 x 800 | 3300 |
| 48 | 4x12 | 60x152 | 38 | 1080 x 610 x 800 | 2800 | |
| 72 | 6x12 | 60x140 | 38 | 1120 x 840 x 800 | 4200 | |
| 72 | 6x12 | 50x140 | 30 | 1120 x 900 x 800 | 4200 | |
| 48 | UPET400 | 4x12 | 75x175 | 48 | 1300 x 700 x 820 | 3800 |
| 72 | 6x12 | 65x160 | 43 | 1250 x 1000 x 820 | 5000 | |
| 96 | 6x16 | 50x140 | 30 | 1300 x 850 x 820 | 5500 | |
| 48 | UPET400H | 4x12 | 75x175 | 48 | 1300 x 700 x 820 | 3800 |
| 72 | 6x12 | 65x160 | 43 | 1250 x 1000 x 820 | 5000 | |
| 96 | 8x12 | 60x140 | 38 | 1250 x 1110 x 820 | 5500 | |
| 96 | 6x16 | 50x140 | 30 | 1230 x 960 x 820 | 5200 | |
| 96 | 6x16 | 50x155 | 30 | 1230 x 1110 x 820 | 5500 | |
| 72 | UPET500 | 6x12 | 75x175 | 48 | 1420 x 1100 x 820 | 6000 |
| 96 | 6x16 | 65x160 | 43 | 1420 x 1100 x 820 | 6000 | |
| 128 | 8x16 | 60x140 | 38 | 1420 x 1250 x 820 | 6000 | |
| 144 | 8x18 | 50x140 | 30 | 1420 x 1250 x 820 | 6000 |
